As the owner of a classic, you know adding amenities is very limited with OE wiring. Kanter has paired with American Autowire to provide you with their Classic Update Series complete wiring kits. These kits include all you need to modernize and upgrade your classic vehicle and are made in the USA specific for your year, make and model. Now you can easily add power accessories such as windows, fuel injection, air conditioning and more easily. Order your kit today.

Please be aware that this kit can take up to 7-10 business days to ship as these are usually made to order and drop shipped direct from the manufacturer to customers in the Continental United States. For all other locations, the kit will need to be shipped to our warehouse first and then shipped out to your location.

Application:

• 1971-74 Dodge Charger, Coronet
• 1971-74 Plymouth Belvedere, GTX, Roadrunner, Satellite

Notes:

• With factory air conditioning

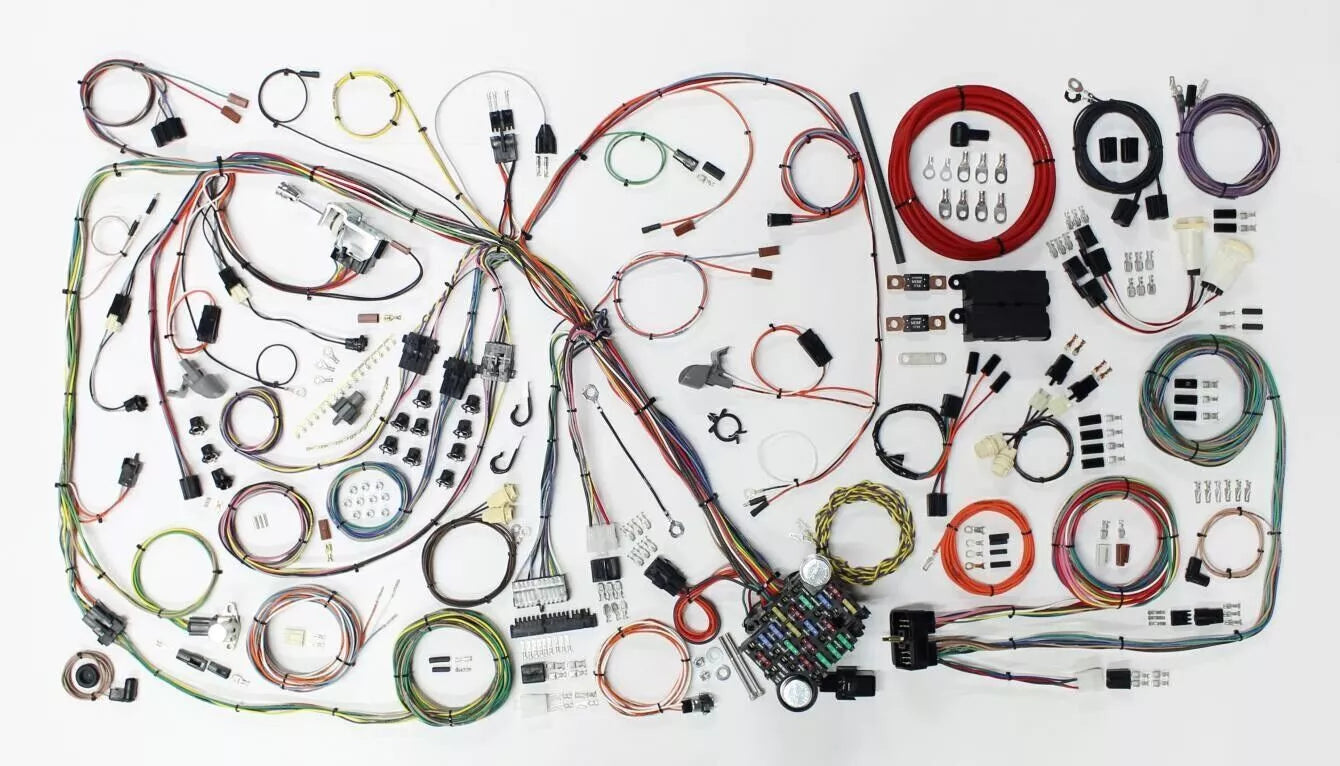

Kit Contents:

• Standard turn signal flasher, hazard flasher and horn relay mounted on harness.
• Fuse box and bulkhead assembly designed to fit in the stock firewall mounting location with only two new screw holes needing to be made in the firewall, template included. All required hardware supplied. New ATO fuse panel allows for easy fuse accessibility. Harness routes exactly as the factory original harness did and is laid out to allow for nearly all aftermarket accessories such as gauge packages, wiper systems, heat and air conditioning systems, etc.
• Many original switch connector bodies - an American Autowire exclusive feature.
• Supports most stock washer and wiper switches/configurations.
• Steering column connectors can plug directly into most aftermarket steering columns or stock '71-74 Mopar columns using the adapter and terminals included in the kit.
• Separate under dash courtesy lamp assemblies are also included for use along with your original dome/interior lighting feeds.
• Instrument cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. Original style terminals, lamp sockets, connectors and locking nuts that will attach to the original cluster (another American Autowire exclusive) are provided for stock cluster connections. The system will also connect into most popular aftermarket gauges such as CLASSIC INSTRUMENTS, DAKOTA DIGITAL, AUTOMETER, VDO and others.

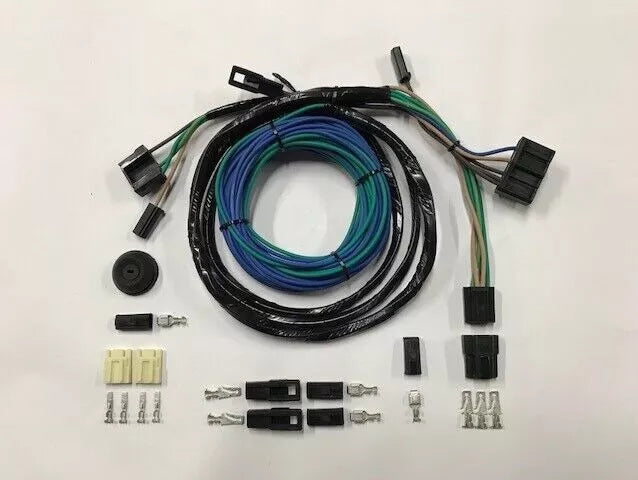

• Rear body harness assembly plugs into the main harness in the stock location and will connect into your stock rear tail lamp assembly harness at the back of the car. Our longer leads allow for stock or custom routing of the wires. Rear body wiring includes backup light lead wires, stop and tail light lead wires, dome light leads, terminals, connectors and lamp sockets, new side market lamp assemblies and fuel tank sender wire with trunk grommet and tank connection.
• New floor dimmer switch is provided for ease of installation. Wire length and connection accommodate original floor mount dimmer switch.
• New headlight switch is included.
• GM bulkhead connectors for the engine and front light wiring are included (another American Autowire exclusive) and allow for easy installation with original or custom routing.
• Engine wiring includes connectors for original points type distributors, OEM Chrysler style starter relay connections, tach and ignition leads, etc. High-powered 1-wire alternator connections are supplied.
• Front lighting includes extra long leads that can be routed for stock or custom applications. All headlight, parking light and directional light leads, along with a switched trigger wire for an electric fan relay (usually recommended with AC) are provided. Mating terminals and connectors are also provided for you to complete your custom installation.
• Many original style light sockets, switch body connectors, terminals, etc.

Made in the USA!
