Disc Brake Kit

Rear Disc Brake Conversion Kit

Adding safety, reliability and performance should be your number one priority when adding disc brakes to your vehicle. One issue that arises often with various aftermarket disc brake conversions is minimal wheel clearance. Components used in these kits are new high quality, precision machined products. A great kit with a factory look and easy installation! Upgrade to Maxgrip drilled and slotted rotors for superior stopping power and performance.

Notes:

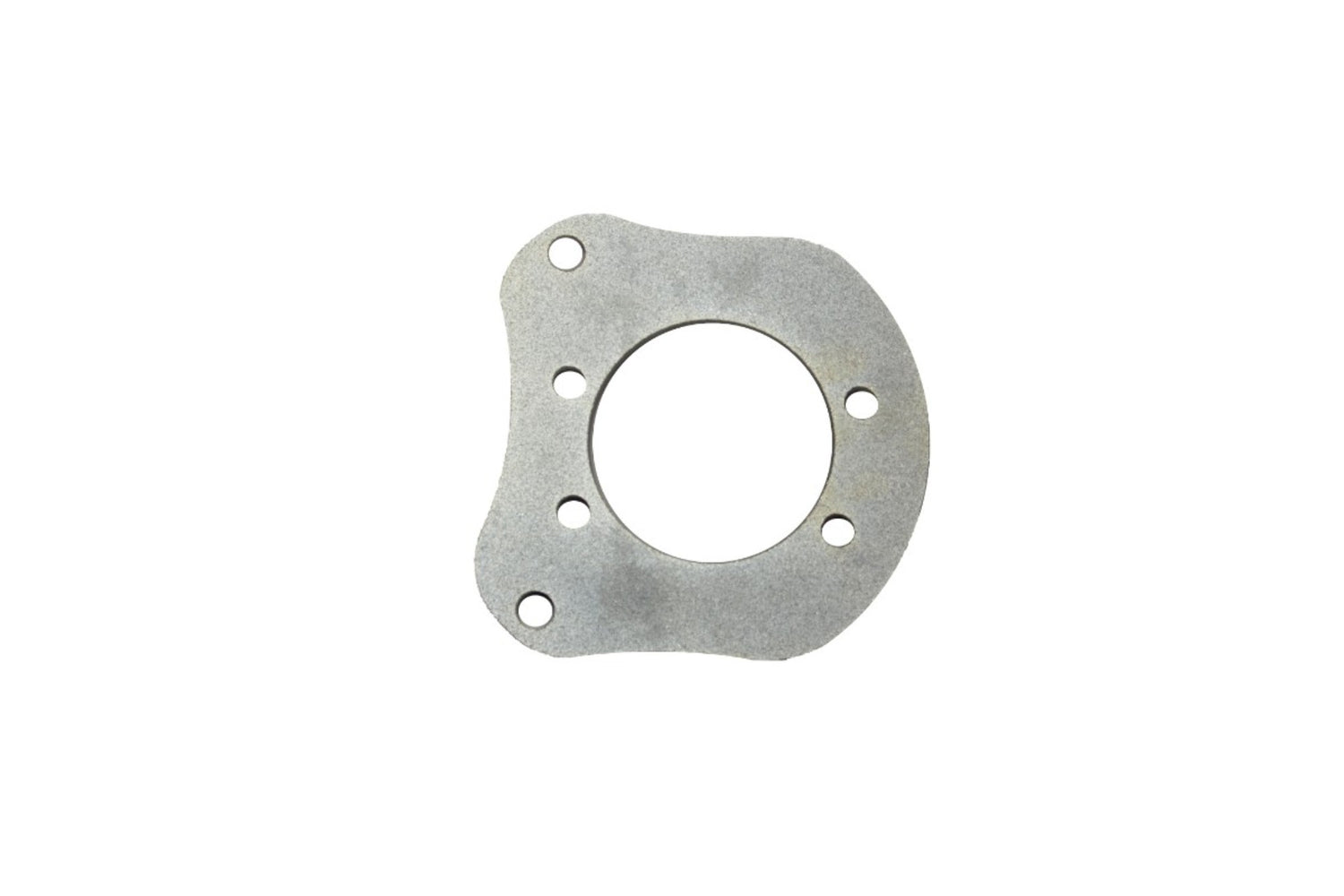

• Confirm axle flange dimensions. See picture.
• 1997-06 Wrangler - Dana 44 axle only.
• In most instances, your stock master cylinder will work with this kit. Changing wheel size, axles, adding weight, etc. can affect your braking performance and feel. Please contact Leed Brakes directly if you need more information on master cylinders that will work on your Jeep if you need improved pedal feel.

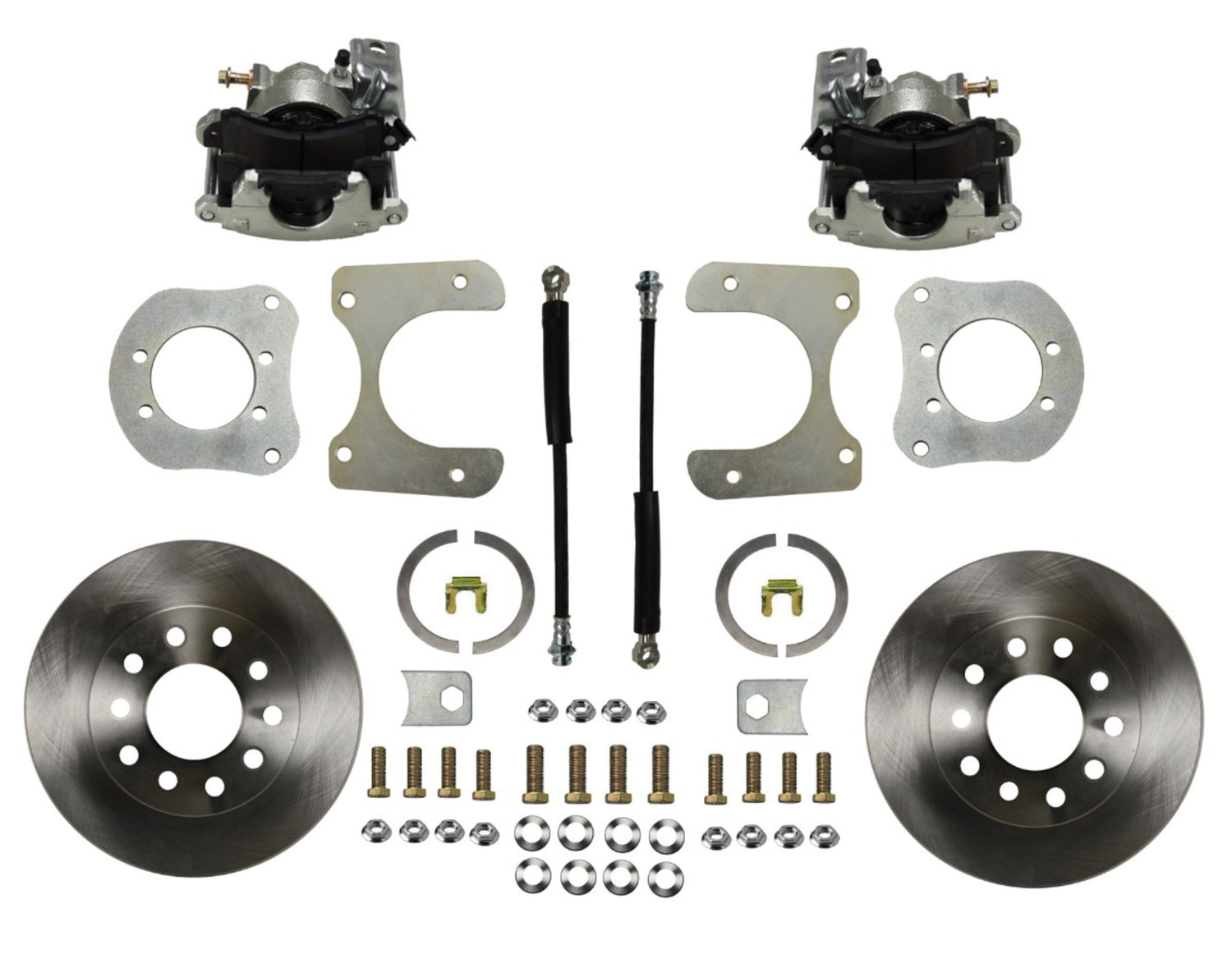

Kit Contains:

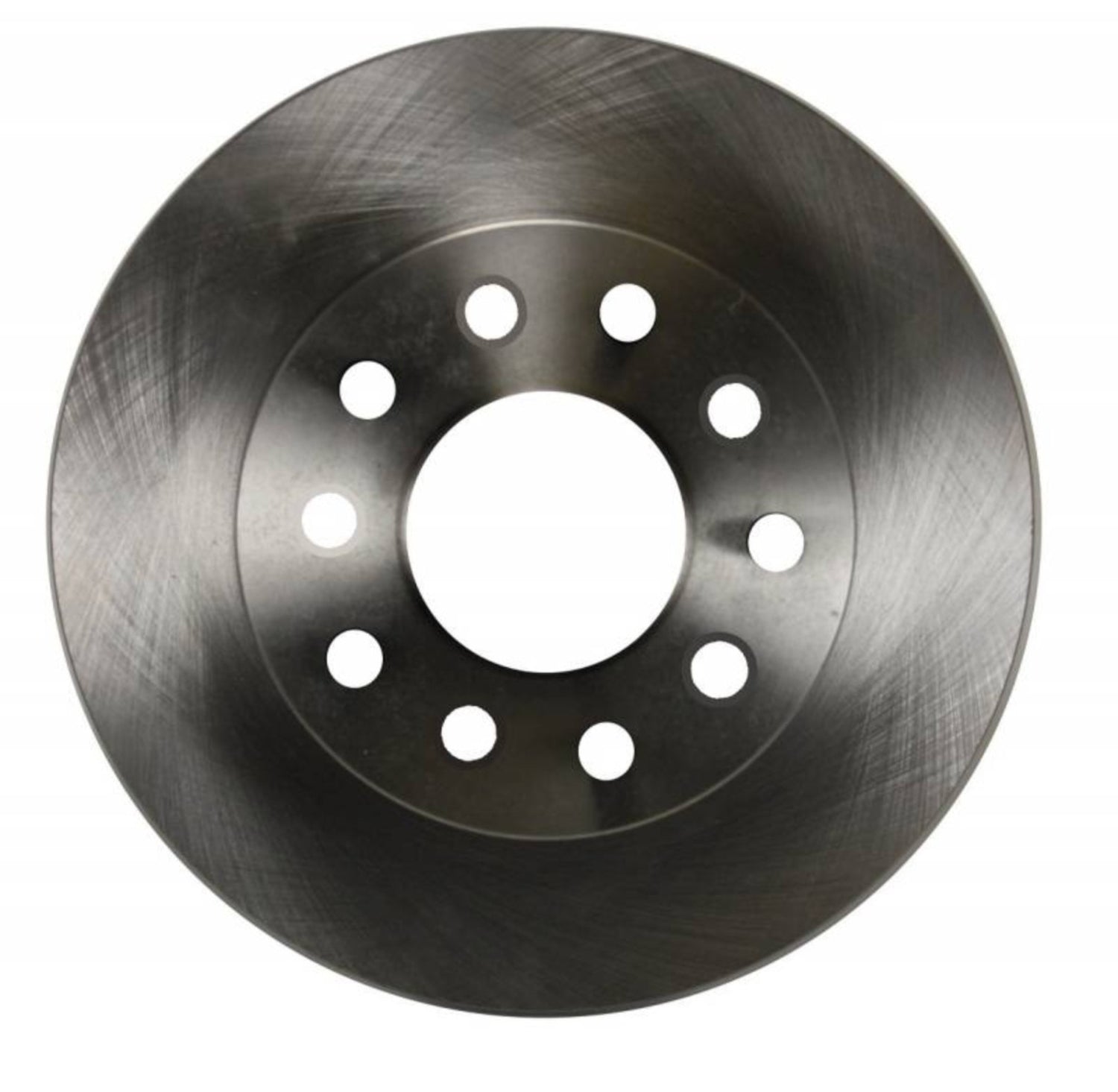

• 11" Rotors

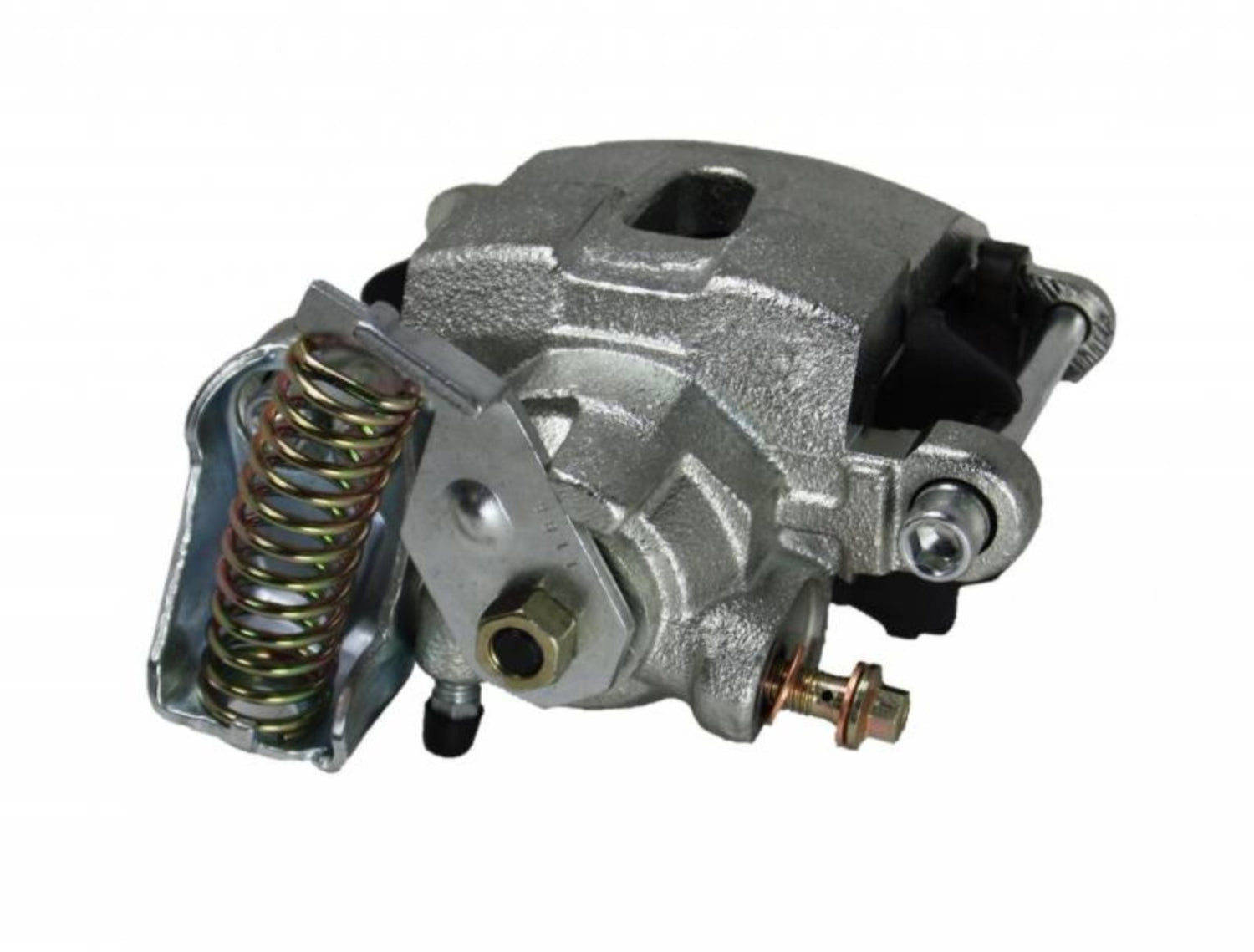

• Single Piston Calipers
• Brake Pads

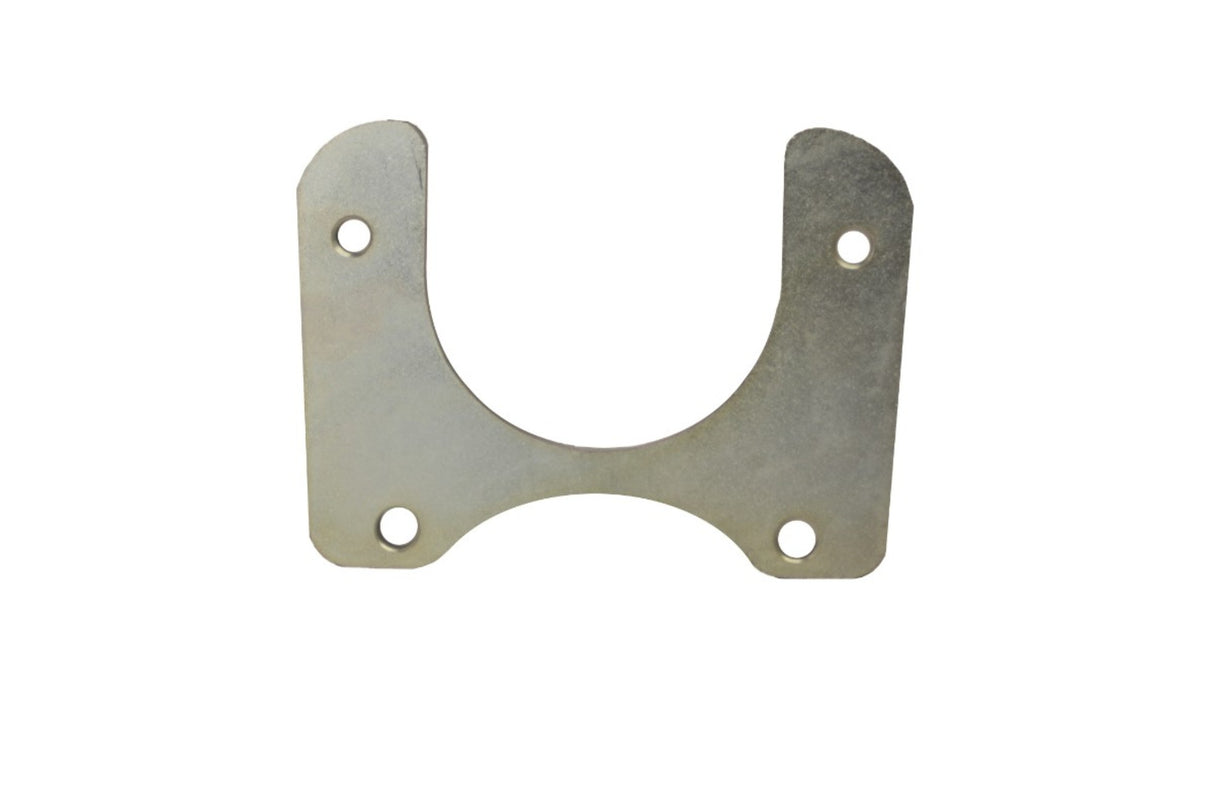

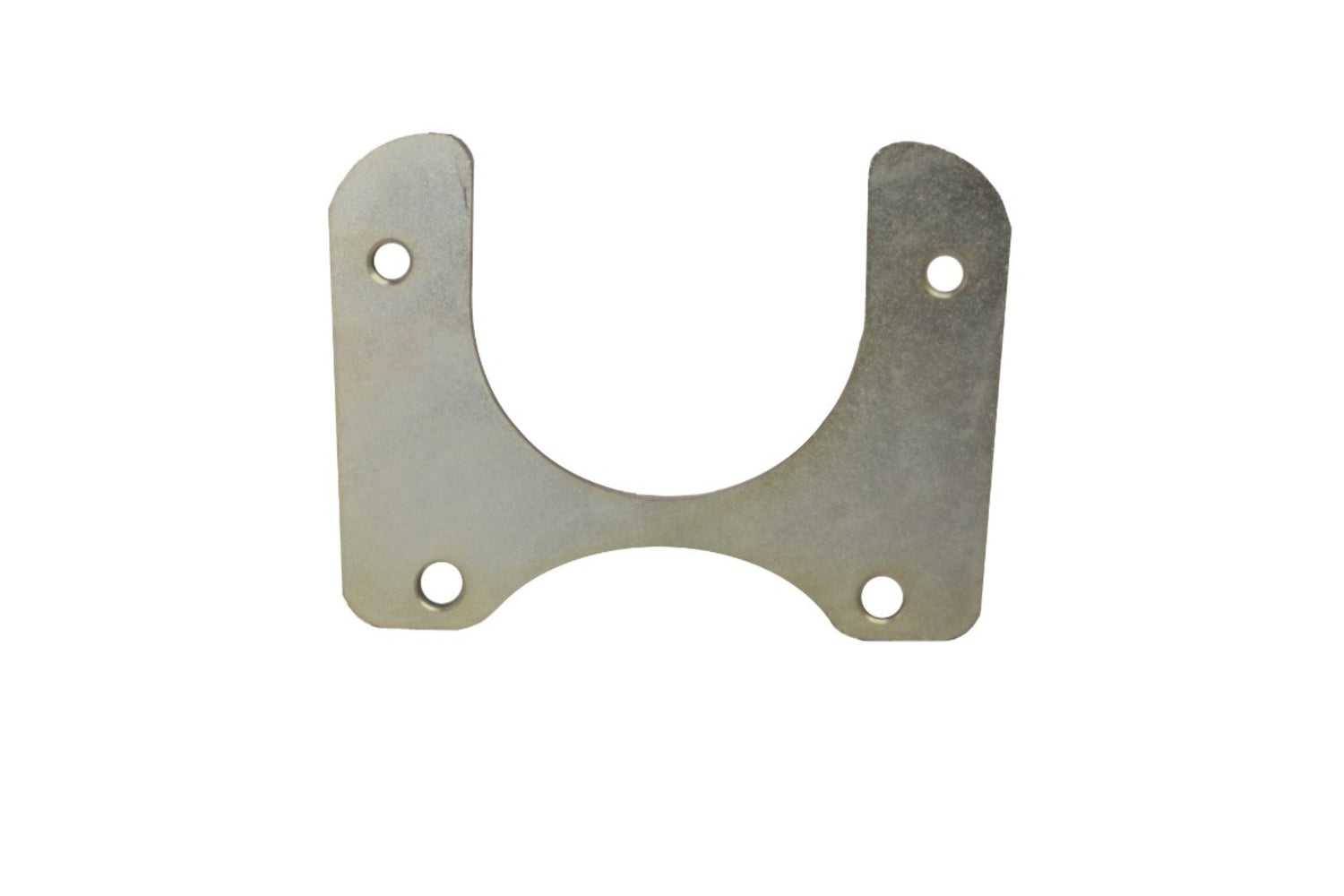

• Caliper Brackets

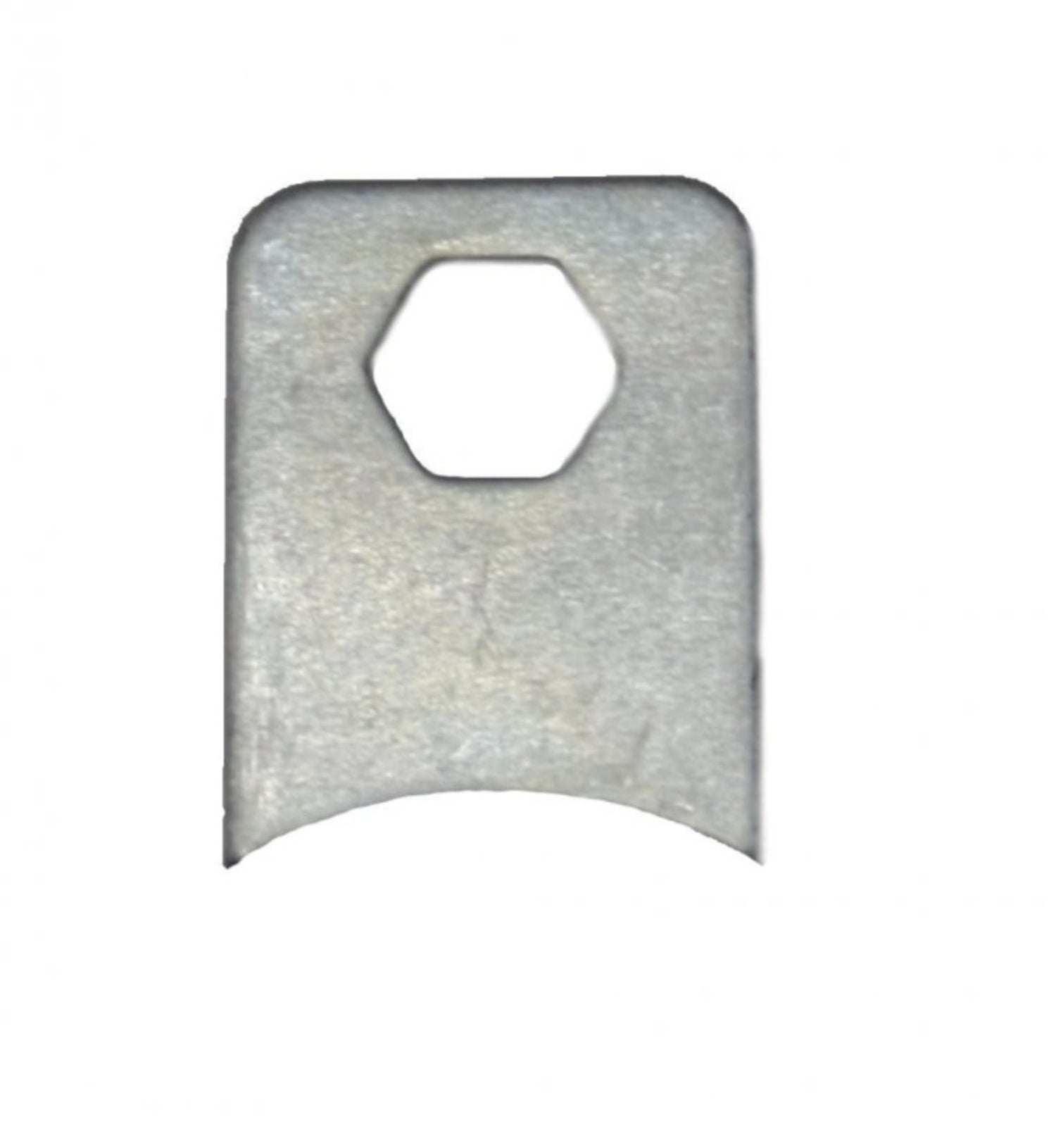

• Mounting Hardware
• Hoses

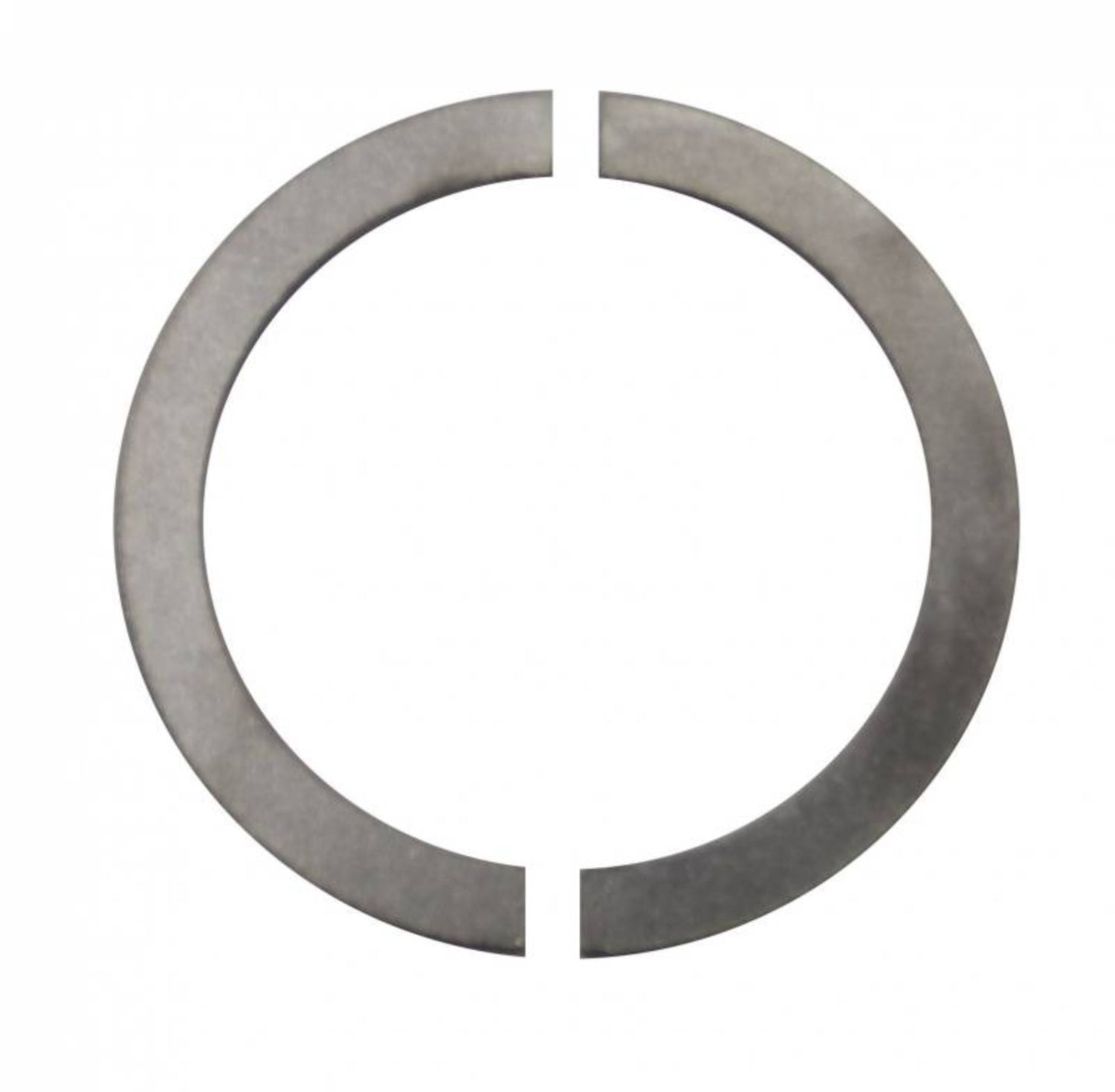

• Seals
• Must use 15" or larger wheels

Specification	Value
Position	Rear
Rotor Style	Standard
Rotor Construction	Cast Iron
Rotor Diameter (inches)	11.0
Rotor Thickness (inches)	1.0
Rotor Bolt Pattern	5 x 4.5 & 5 x 4.75
Caliper Included	Yes
Caliper Piston Quantity	One
Caliper Material	Cast iron
Caliper Finish	Zinc Plated
Caliper Piston Material	Stainless Steel
Dust Shields / Backing Plates Included	No
