Wiring Harness

As the owner of a classic, you know adding amenities is very limited with OE wiring. Kanter has paired with American Autowire to provide you with their Classic Update Series complete wiring kits. These kits include all you need to modernize and upgrade your classic vehicle and are made in the USA specific for your year, make and model. Now you can easily add power accessories such as windows, fuel injection, air conditioning and more easily. Order your kit today.

Please be aware that this kit can take up to 7-10 business days to ship as these are usually made to order and drop shipped direct from the manufacturer to customers in the Continental United States. For all other locations, the kit will need to be shipped to our warehouse first and then shipped out to your location.

Application:

• 1967-75 Dodge Dart
• 1967-75 Plymouth Duster, Scamp, Valiant
• 1967-69 Plymouth Barracuda

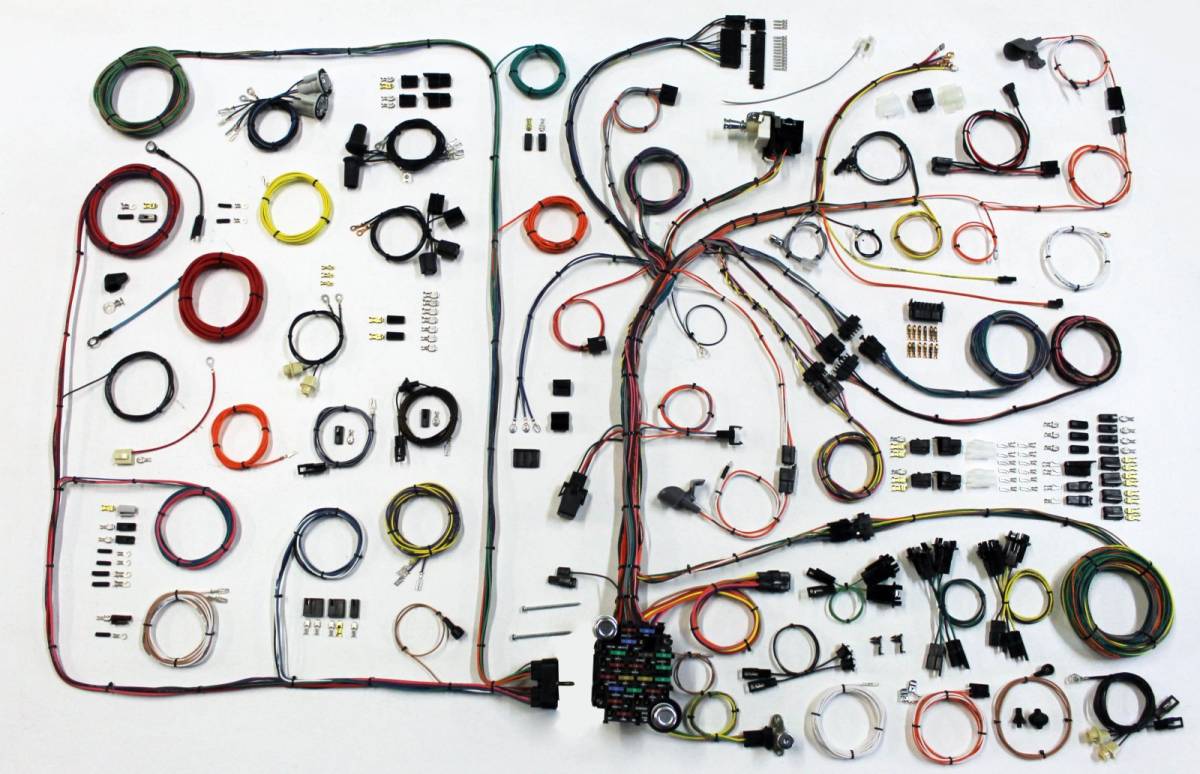

Kit Contents:

• A replacement headlight switch with internal 30-amp circuit breaker included. Retention collar nut, adjustable length shaft and custom knob are also included.
• Standard turn signal flasher, hazard flasher and horn relay mounted remotely on harness.
• Fuse box deisgned to fit in original location with mods to the firewall (template included). All required hardware supplied. New ATO fuse panel allows for easy fuse and circuit breaker accessibility. Harness allows for nearly all aftermarket accessories such as gauge packages, wiper systems, heat and air conditioning systems, etc. Firewall modification template included.
• Original switch connector bodies - an American Autowire exclusive feature.
• Steering column connectors will plug directly into most aftermarket steering columns as well as 1968-72 GM columns which utilize stock GM turn signal switches.
• Acommodates 1968 & 69 models with the factory front cornering lamp option.
• Separate under dash courtesy lamps for use along with your original dome/interior lighting.
• Instrument cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. Original terminals and PC board connector (another American Autowire exclusive) are provided for stock cluster connections. The system will also connect into most popular aftermarket gauges such as CLASSIC INSTRUMENTS, DAKOTA DIGITAL, AUTOMETER, VDO and others.
• Rear body harness assembly plugs into the main harness in the stock location and our longer leads allow for stock or custom routing of the wires. Rear body wiring includes backup light lead wires (with correct lamp sockets for 1969) or connectors, stop and tail light lead wires (with correct lamp sockets for 1969) or connectors, lamp sockets and leads for rear side markers (1968 & 69), terminals and connectors to mate with the license plate connection wire, and fuel tank sender wire with trunk grommet and tank connection. (1970-72 tail lamp bucket harnesses are available separately)
• New floor dimmer switch is provided for ease of installation. Wire length and connection accommodate original floor mount dimmer switch.
• GM bulkhead connectors for the engine and front light wiring are included (another American Autowire exclusive) and allow for easy installation with original or custom routing.
• Engine wiring includes connectors for original points type as well as H.E.I. distributors. Power and tach connectors supplied for GM H.E.I. distributors. Alternator connectors are supplied for GM "SI" series internally regulated alternators. GM "CS" series alternator adapter is available separately.
• Front lighting includes extra long leads that can be routed for stock or optional applications. All headlight, parking and directional light connectors and terminals are provided along with a switched trigger wire for an electric fan relay (usually recommended with AC).
• Original molded front parking lamp connections for the 1968-70 models (an American Autowire exclusive).

Made in the USA!
